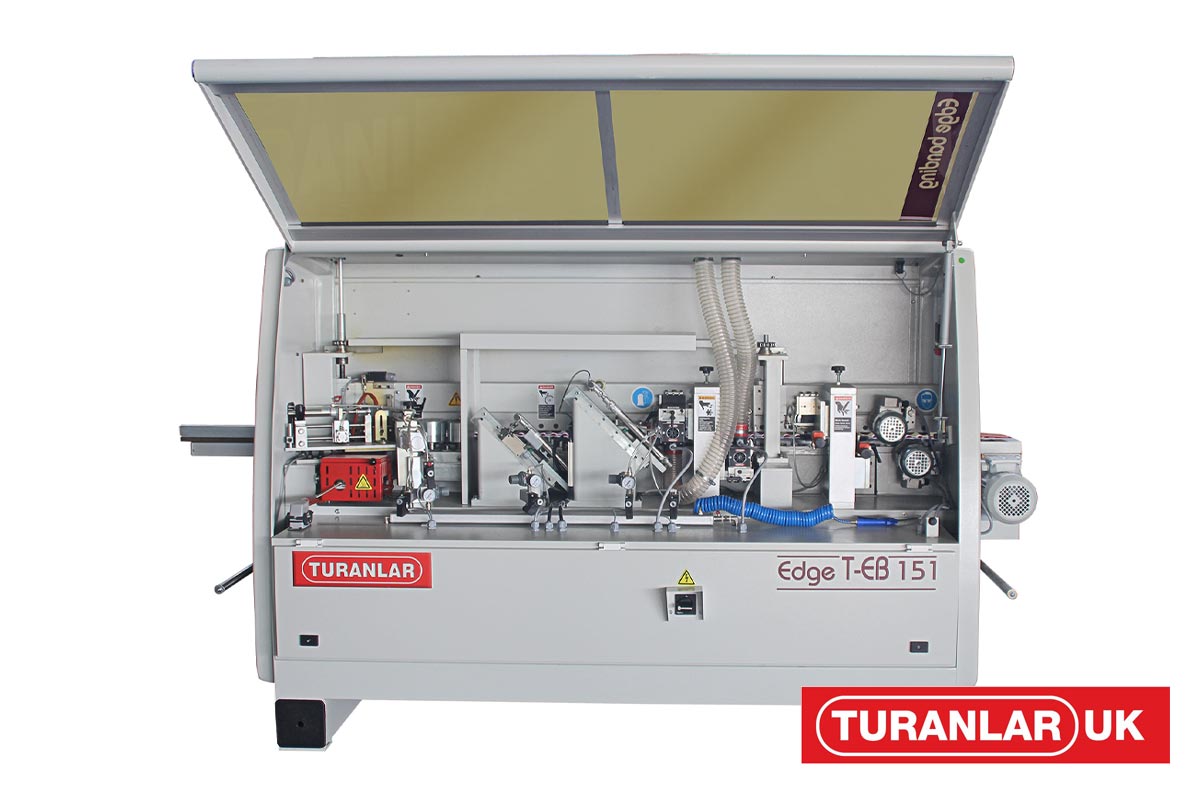

Edgebanding - T-EB-151
The T-EB-151 is part of the economical series of smaller edgebanders manufactured by Turanlar. The T-EB-151 comes with standard units found on the majority of this size edgebander i.e. End Cutting, Top and Bottom Trimming units, Scraping capabilities as well as our standard Teflon coated EVA Hotmelt glue pot system found on the majority of the Turanlar UK Edgebander range. Buffing units are optional on this particular model. The machine is manufactured to the highest European standards expected within the UK market. Please get in touch if you require more details and pricing.
Product Specification
| Electrical Level: | 415 V |
| Phase: | Three Phase |
| Nominal Current: | 14A |
| Edge Material Thickness: | 0.4 – 3mm |
| Board Thickness: | 10 - 50mm |
| Speed: | 12m/min |
| Total Electrical Power: | 6kW |
| Total Air Pressure: | 6 Bar |
| Total Air Usage: | 80lt/min |
| Working Height: | 870mm |
| End Cutting: | 2 x 0,37kW / 12000rpm |
| Top-Bottom Milling: | 2 x 0,37kW/ 12000rpm |
| Buffing Motor: | 2 x 0,37kW/1500rpm |
| Dust Extraction Diameter: | 150mm |
