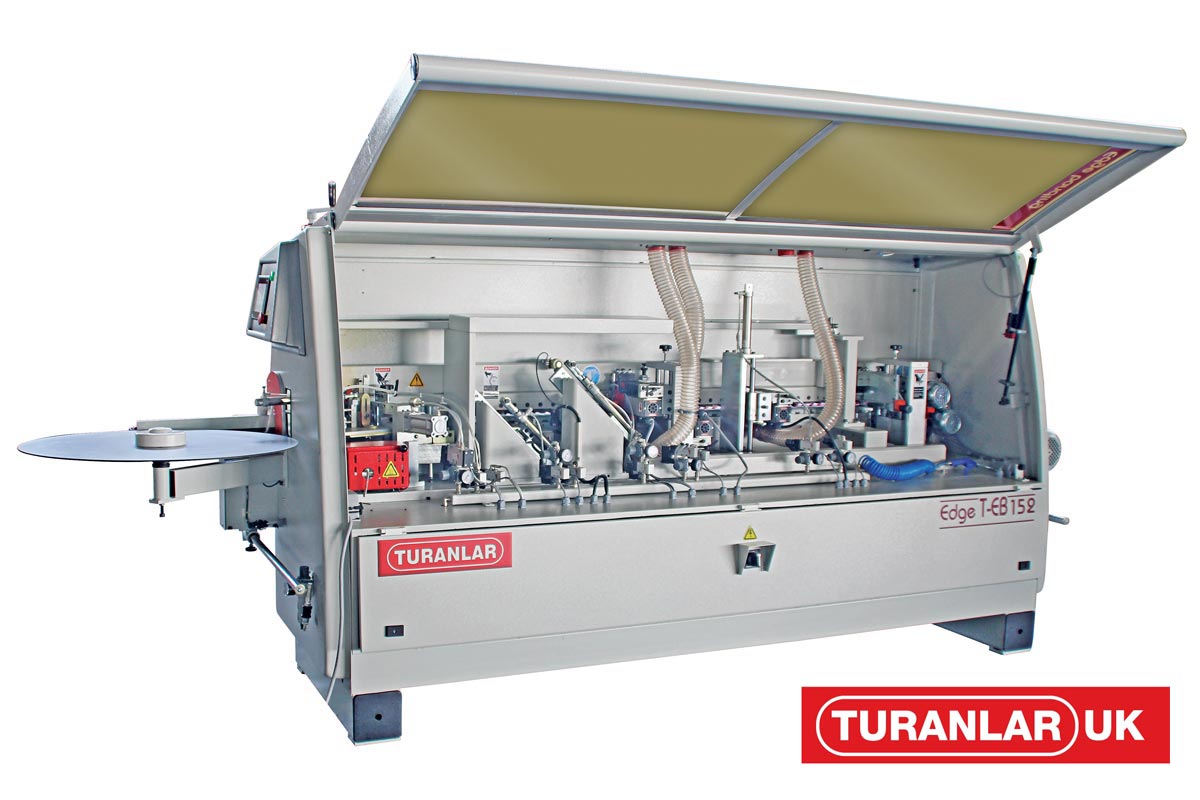

Edgebanding - T-EB-152

The T-EB-152 is part of the economical series of smaller edgebanders manufactured by Turanlar. The T-EB-152 comes with standard units found on the majority of this size edgebander i.e. End Cutting, Top and Bottom Trimming units, Scraping capabilities as well as our standard Teflon coated EVA Hotmelt glue pot system found on the majority of the Turanlar UK Edgebander range. This particular edgebander can also offer corner rounding facilities as well as buffing units. It also comes with a touch screen PLC panel for easy operation. The T-EB-152 comes with a lot of specification for the size of the machine. The machine is manufactured to the highest European standards expected within the UK market. Please get in touch if you require more details and pricing.

Product Specification
Electrical Level:415 V
Phase:Three Phase
Nominal Current:15A
Edge Material Thickness:0.4 – 3mm
Board Thickness:10 - 50mm
Board Length:
Max with Trim100mm
Min with Trim120mm
Board Width:Min 50mm
Speed:8.5- 11.5m/min
Total Electrical Power:6,5kW
Total Air Pressure:6 Bar
Total Air Usage:100lt/min
Working Height:870mm
End Cutting:2 x 0,37kW / 12000rpm
Top-Bottom Milling:2 x 0,37kW/ 12000rpm
Trimming:0,37kW/12000rpm
Buffing Motor:2 x 0,11kW/1400rpm
Dust Extraction Diameter:150mm
Machine Dimensions (WxLxH):1000x3500x1700mm
Machine Weight:1115kg

Download Spec Sheet
