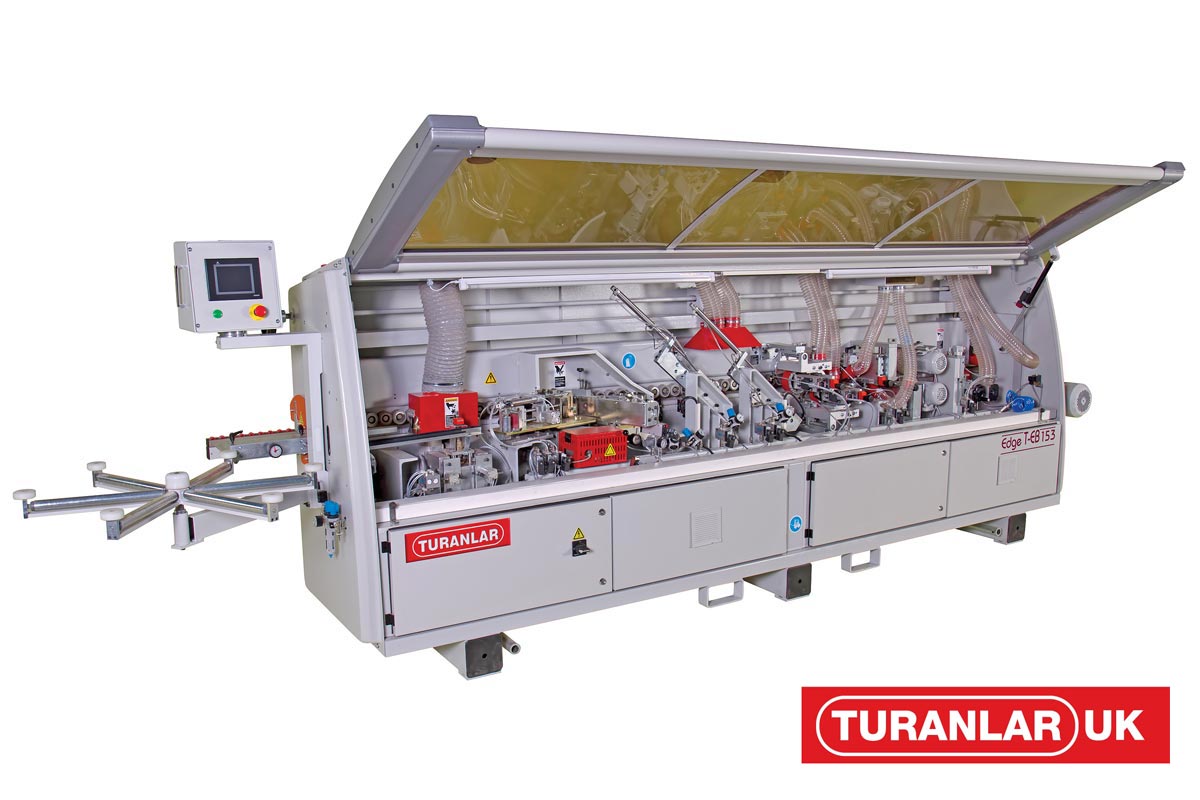

Edgebanding - T-EB-153
The T-EB-153 is one of the professional series of edgebanders manufactured by Turanlar. The T-EB-153 performs perfectly with its PLC Touch Screen, Pre-Milling, End Cutting, Top and Bottom Trimming units, Radius Scraping and Buffing processes as well as our standard Teflon coated EVA Hotmelt glue pot system found on the majority of the Turanlar UK Edgebander range. It can apply all common edging materials between 0.4-3mm (PVC, Veneer, ABS, Melamine & Solid Wood etc.) all up to 50mm wide panels. It has a maximum feeding speed of 20m/min. The T-EB-153 comes with a lot of specification for the price of the machine. The machine is manufactured to the highest European standards expected within the UK market. Please get in touch if you require more details and pricing.
Product Specification
| Electrical Level: | 415 V |
| Phase: | Three Phase |
| Nominal Current: | 20,2A |
| Edge Material Thickness: | 0.4 – 3mm |
| Board Thickness: | |
| Without Pre-Milling | 10-50mm |
| With Pre-Milling | 10-46mm |
| Speed: | 15-20m/min |
| Total Electrical Power: | 10,4kW |
| Total Air Pressure: | 6 Bar |
| Total Air Usage: | 250lt/min |
| Working Height: | 910mm |
| Pre-Milling: | 2 x 1,50kW/ 12000rpm |
| End Cutting: | 2 x 0,37kW / 12000rpm |
| Top-Bottom Milling: | 2 x 0,37kW/ 12000rpm |
| Trimming: | 0,37kW/12000rpm |
| Buffing Motor: | 2 x 0,25kW/2800rpm |
| Grooving Saw: | 2,2kW/9000rpm |
| Dust Extraction Diameter: | 150mm |
| Machine Dimensions (WxLxH): | 1010x5300x1700mm |
| Machine Weight: | 3100kg |
