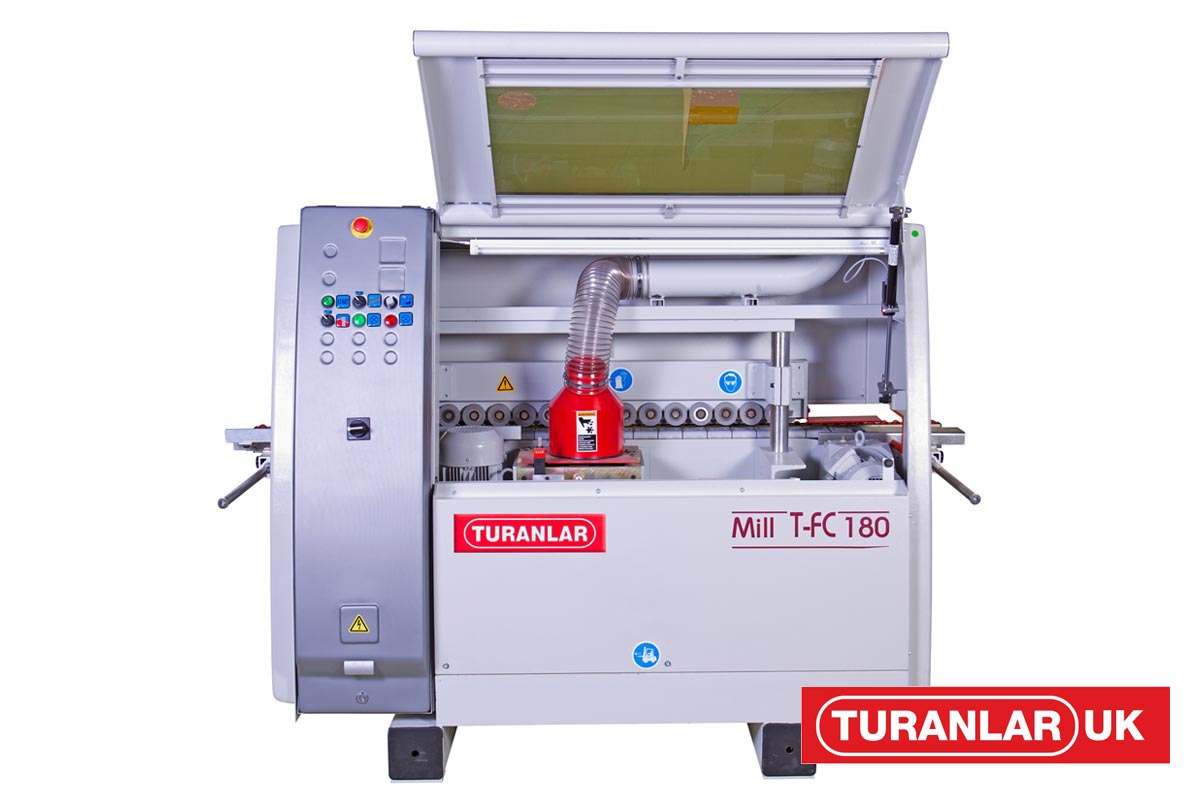

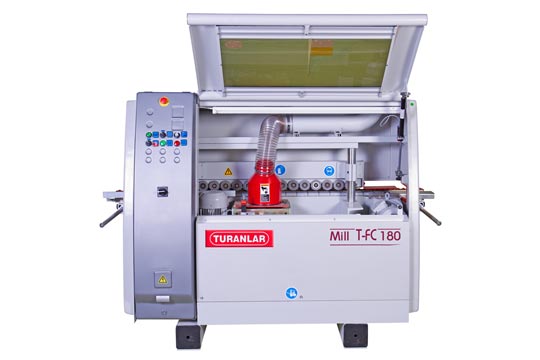

Milling Machine - T-FC-180

We are proud to be able to offer the Turanlar UK range of milling machines. The machine comes in 3 different sizes and specifications depending upon your requirements. The range of milling machines available are perfect for milling specific edged profiles on MDF, Chipboard or Compact Laminate. These are useful for companies looking to simplify and improve efficiency and safety of their milling process while speeding up production.

The different models available offer different specification for example the T-FC-180 is our simplest machine with just one cutting unit. On the T-FC-196 you have an additional grooving saw and the T-FC-198 is one step further with two cutting heads and a grooving saw unit. All models come with adjustable track speed as standard.

In addition our T-FC-198 model can be modified so that it has a polishing/spray unit which has proved popular within the cubicle manufacturing of Compact Laminate. As well as adding a clean profile to the edge of the panel it can also spray oil onto the edge of the profile followed by a buffing station to clean and polish the edge. Get in touch if you would like more information on this extra.

Please see our technical data information on each machine to see which one would best suit your company's needs.

Product Specification
T-FC 180T-FC 196 T-FC 198
Electrical Level:415 V415 V 415 V
Phase:Three PhaseThree Phase Three Phase
Nominal Current: 14,6A17,2A 26A
Board Thickness: 10-50mm10-50mm 10-50mm
Speed:2-11m/min2-11m/min 2-11m/min
Total Electrical Power:5,1kW6,2kW 10kW
Cutter Rotation:4500Rpm4500Rpm 4500Rpm
Milling Motor Power:4kW4kW 2 x 4kW
Grooving Saw:N/A1,1kW/2800Rpm1,1kW/2800Rpm
Working Height: 880mm880mm 880mm
Machine Height:1600mm1600mm 1600mm
Machine Width:920mm920mm 920mm
Machine Length:2400mm2400mm 3300mm
Machine Weights:735kg775kg 1075kg

Download Spec Sheet
