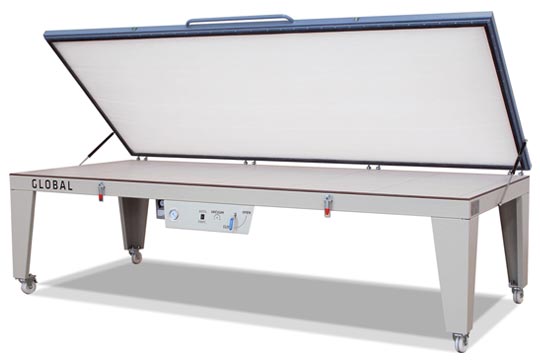

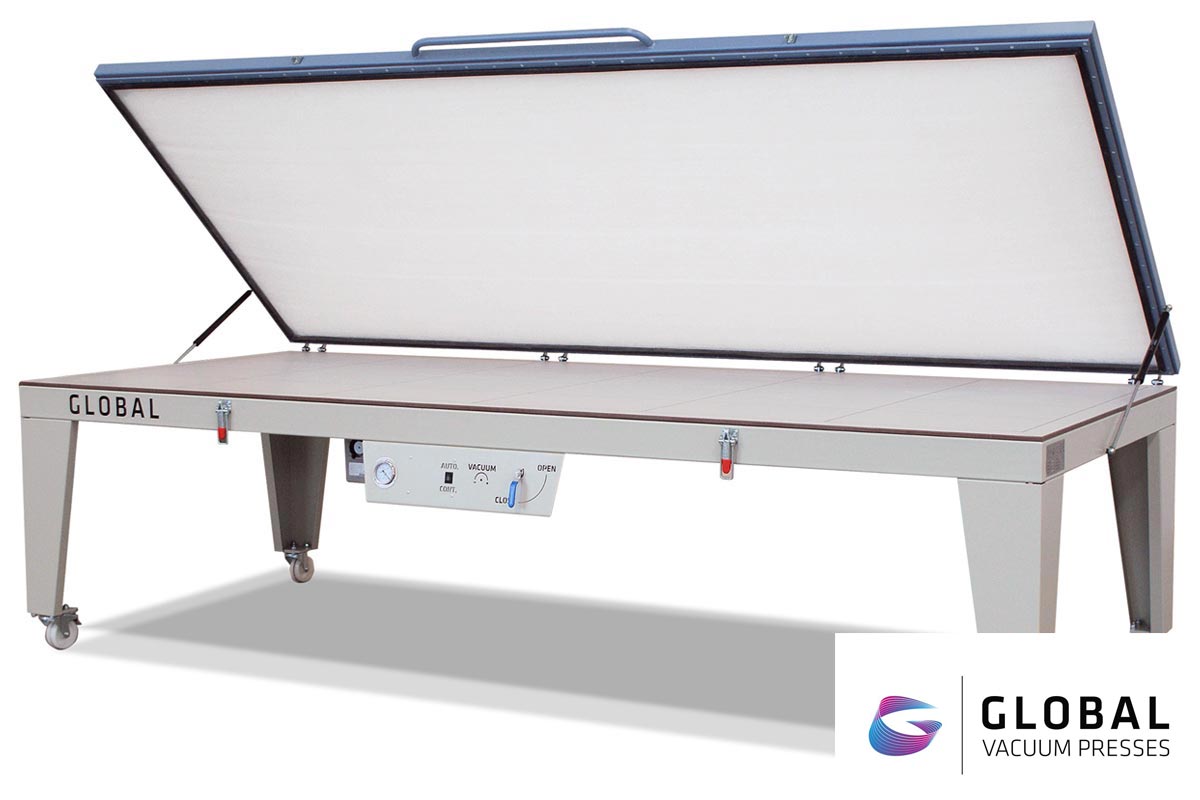

Vacuum Membrane Press - Standard - VMP-S

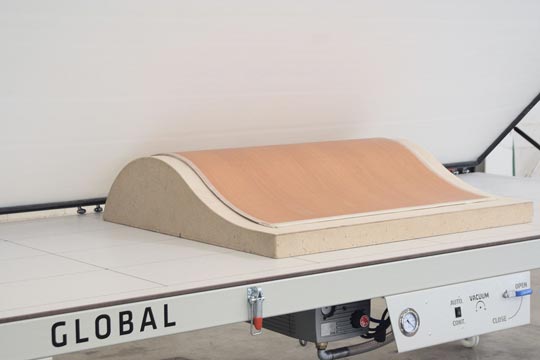

The standard vacuum press model is a cost efficient vacuum membrane press that provides ideal solutions for woodworking such as veneering, laminating and bending different kinds of wood without compromising quality. It is designed for individual and up to medium production capacities. Typical press applications are wood panel veneering and laminating as well as bending plywood. Equipped with a silicone membrane the press is also suitable for 2D thermoforming of acrylic solid surface material and similar composite materials. For more information please contact us.
Product Information
- Ideally suited for thermoforming and woodworking.
- Designed for individual and small production capacities

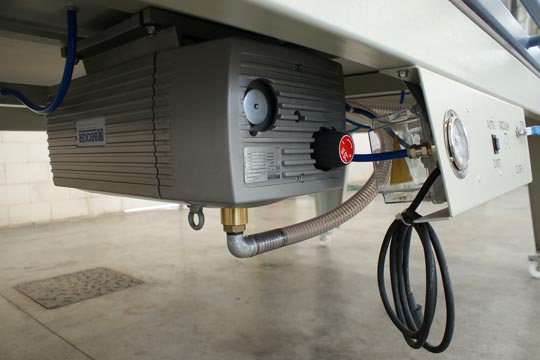

- Rotary van vacuum pump, oil and maintenance free

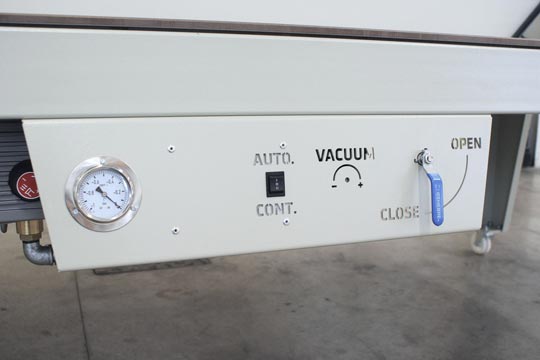

- Continuous vacuum pump mode, optional automatic mode
- Max. vacuum pressure 9t/m²
- 10mm HPL Compact press board with up to 12 suction points
- Available with natural rubber, polyurethane or silicone rubber membrane
- High volume membranes available (PU/SR)
- Optional feature: 300L vacuum tank for extra fast vacuum build up
- 220V, single phase
Product Specification
| Code | Vacuum Pump | Press Capacity 1| Membrane | Membrane Heights | Max. Pressing Height 2 | |
|---|---|---|---|---|---|
| VMP-S-1313 | 10m³/h | 1310 x 1310 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
| VMP-S-2513 | 16m³/h | 2560 x 1310 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
| VMP-S-3113 | 25m³/h | 3160 x 1310 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
| VMP-S-3713 | 25m³/h | 3760 x 1310 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
NR= Natrual Rubber Membrane
PU= Polyutherane Membrane
SR= Silicone Rubber Membrane
1. Inside Dimensions of the membrane frame
2. Max. pressing height depends on the memrane and physical size of the component
