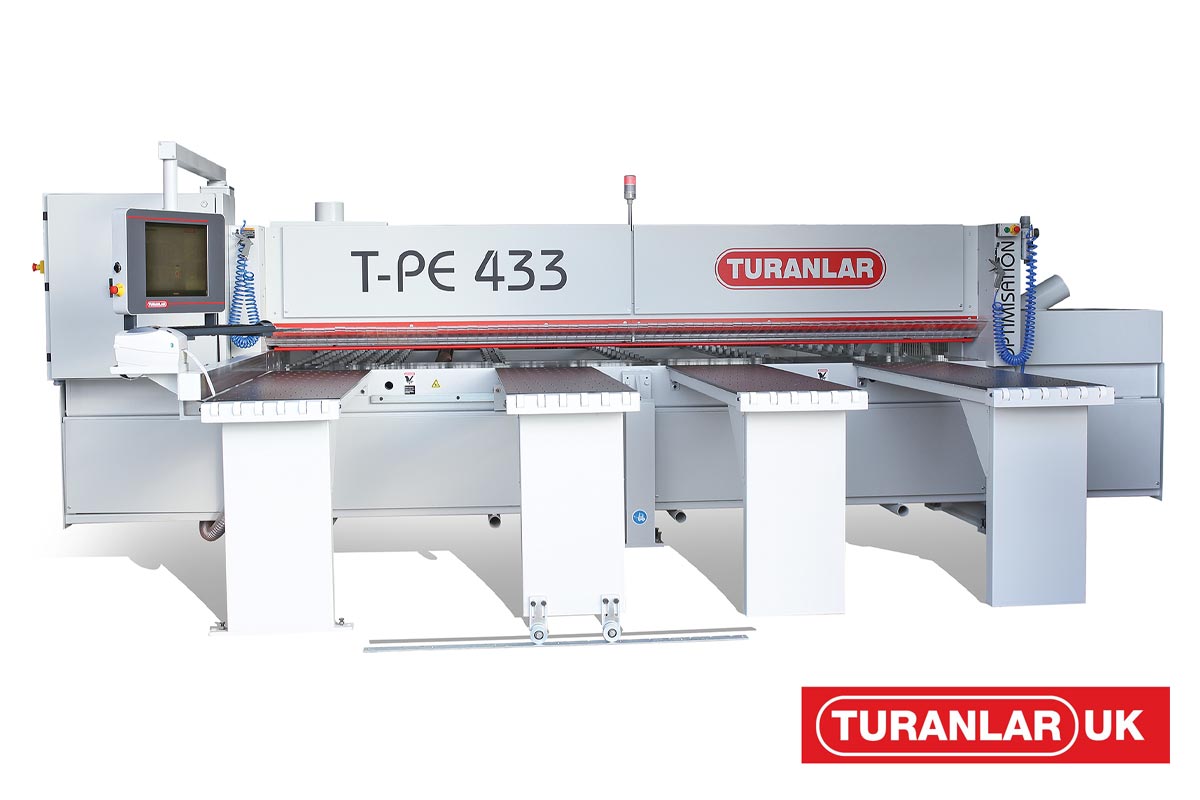

Beam Saw - T-PE-433

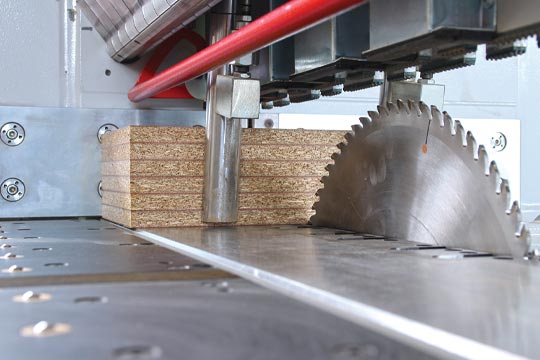

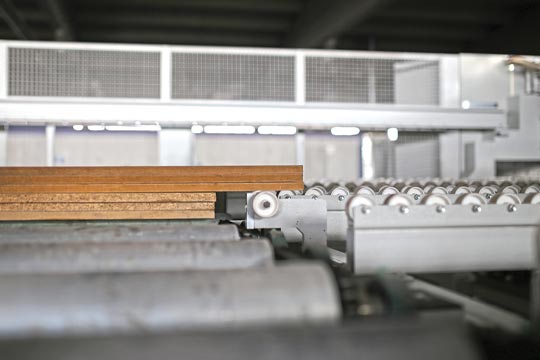

We are proud to be able to offer the Turanlar range of Beam Saws available through MSUK. The different models of beam saws provided under the Turanlar UK brand cater for SME businesses as well as large established plc ventures. There is a model for everyone. The traditional features of good quality beam saws are prevalent in all the models that Turanlar manufacture i.e. cutting and scoring saws, strong durable body, optimisation on all models, High Safety and Security features. There are also additional features that can be added like automated rear panel loading conveyors etc.

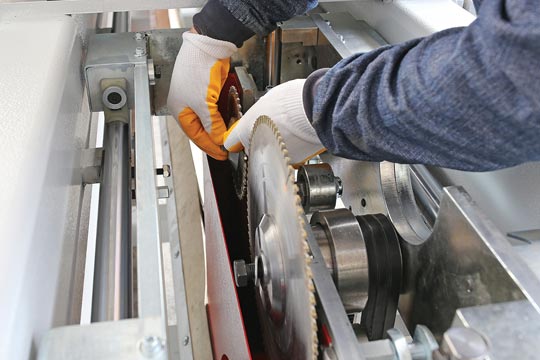

The T-PE-436 and T-PE-434 are very similar models in that they both have the PANELCUT software which is very easy to follow and program and allows for visual drawings to be imported even from different software. The speed of the saw operation can operate up to 150m/min cutter speed and 60m/min for the pusher fence. Another advantage is the simplistic pneumatic system on both machines for swapping around the saws when required, literally taking seconds. Both have safety features that show on the monitor if an error has occurred. Other advantages to these machines are a barcode printer, automated adjustment of saw blade according to panel thickness, automatic lubrication and they can be used in a manual cut operation if required. The major difference between the two machines are the T-PE-436 can cut at a depth of 108mm and the T-PE-434 cutting depth is 72mm.

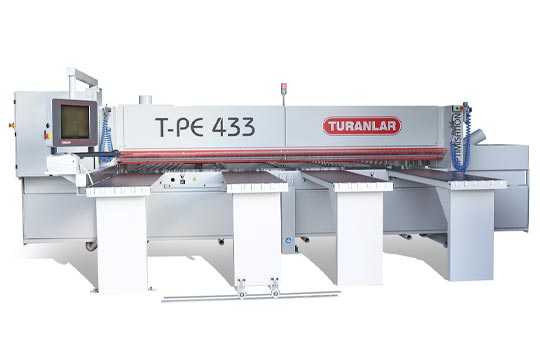

The T-PE-433 is a much more basic and functional machine which can cut up to depths of 54mm. Obviously it is a much more heavy operator user machine without the same CNC technology you find on the newer bigger models. The T-PE-433 is a very effective machine at a competitive price to its rivals in the market. Please see our technical data information on each machine to see which one would best suit your company's needs and get in touch if you wish to make an enquiry.

Product Specification
Electrical Level:400 V / 50Hz
Total Electrical Power:12,1kW
Nominal Current: 25,1A
Air Pressure:6 Bar
Cutting Width:4200mm
Feeder Table Length:4200mm
Cutting Depth:54mm
SAW OPERATION SPEED
Cutter Group Forward – Backward:N/A
Rear Fence Forward – Backward:N/A
Forward Speed:12-34m/min
Backward Speed:34m/min
Saw Motor Power Cutting:5,5kW
Saw Motor Power Scoring:-

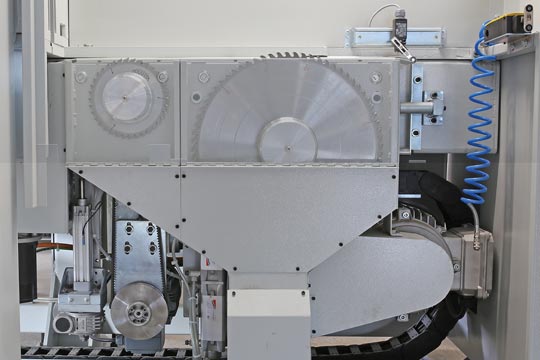

SAW ROTATION
Cutting:4500rpm
Scoring:5000rpm
SAW SIZE
Cutting:300x30x4.4=60
Scoring:150x30
Dust Out Feed:150mm (x4)
Working Space of Machine:48m²
Machine Dimensions (WxLxH):6.5 x 7.0 x 1.95m
Machine Weight: 5250kg
