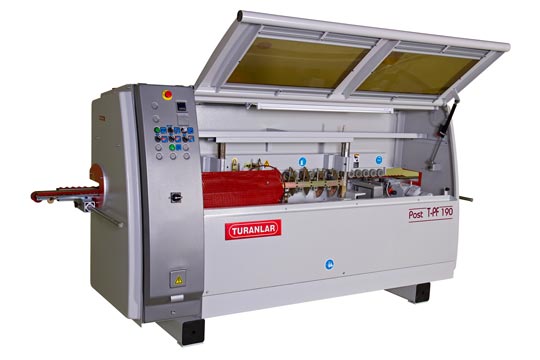

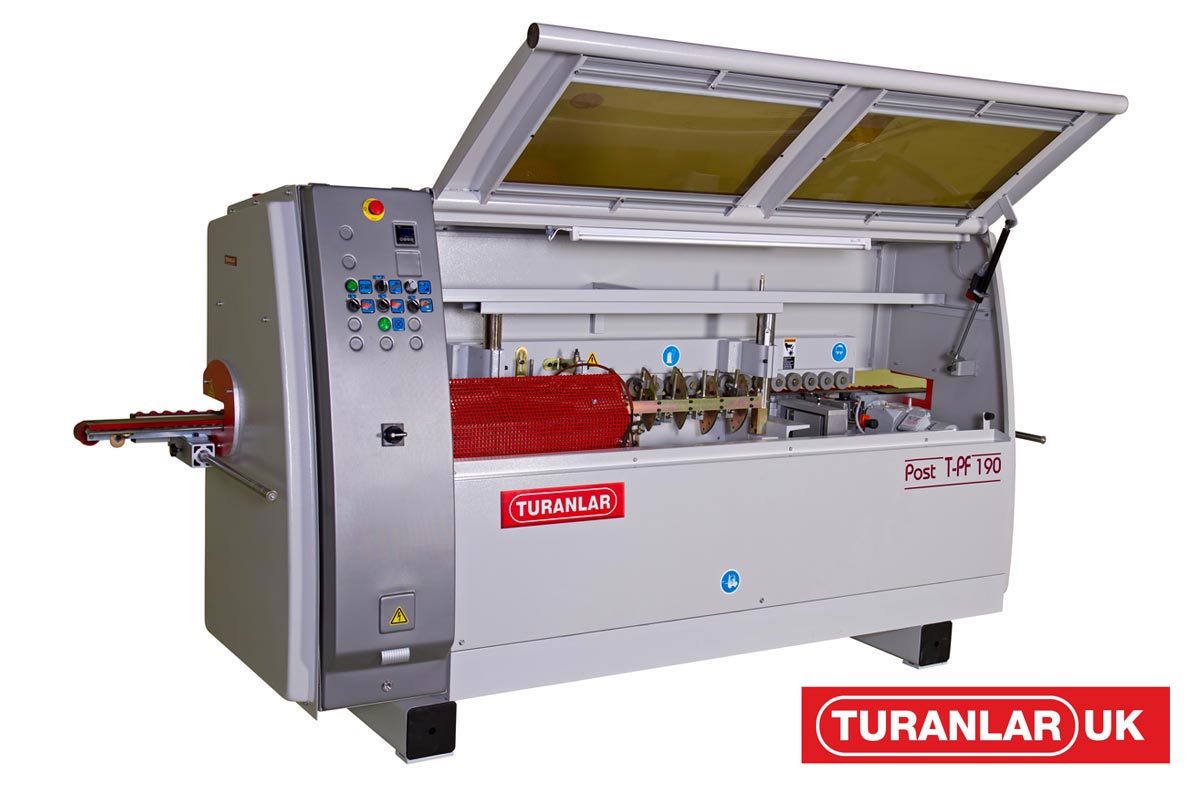

Through Feed Postformer - T-PF-190
This is the most simplistic throughfeed postformer that Turanlar supply. Unlike the T-PF-280 and T-PF-590, it does not come with a triple cartridge carousel or infrared heaters. This machine is affordable for small manufacturers who have a need for postformed panels/worktops but will not vary from their specification. It is a basic entry level throughfeed postformer and should only be considered if you have a small output of postformed products.
Product Information
Units that come standard with the T-PF-190 are:
- Automatic Conveyer Unit
- Top & Bottom Heating Elements with Temperature Control.
- Single Profile Cartridge Unit
- Bottom Trimming Unit
- Speed Adjustment Unit
Product Specification
| Electrical Level: | 400 V – 50 Hz. |
| Nominal Current: | 14, 5 A |
| Laminate Thickness: | 0.4-1 mm |
| Laminate Height: | 70 mm |
| Speed: | 0 – 7.5 m / min |
| Total Electrical Power: | 5, 5 kW |
| Working Height: | 870 mm |
| Trimmer Motor: | 0, 37 kW - 12000 rpm |
| Machine Width: | 920 mm |
| Machine Length: | 3300 mm |
| Machine Height: | 1600 mm |
| Machine Weight: | 815 kg |
